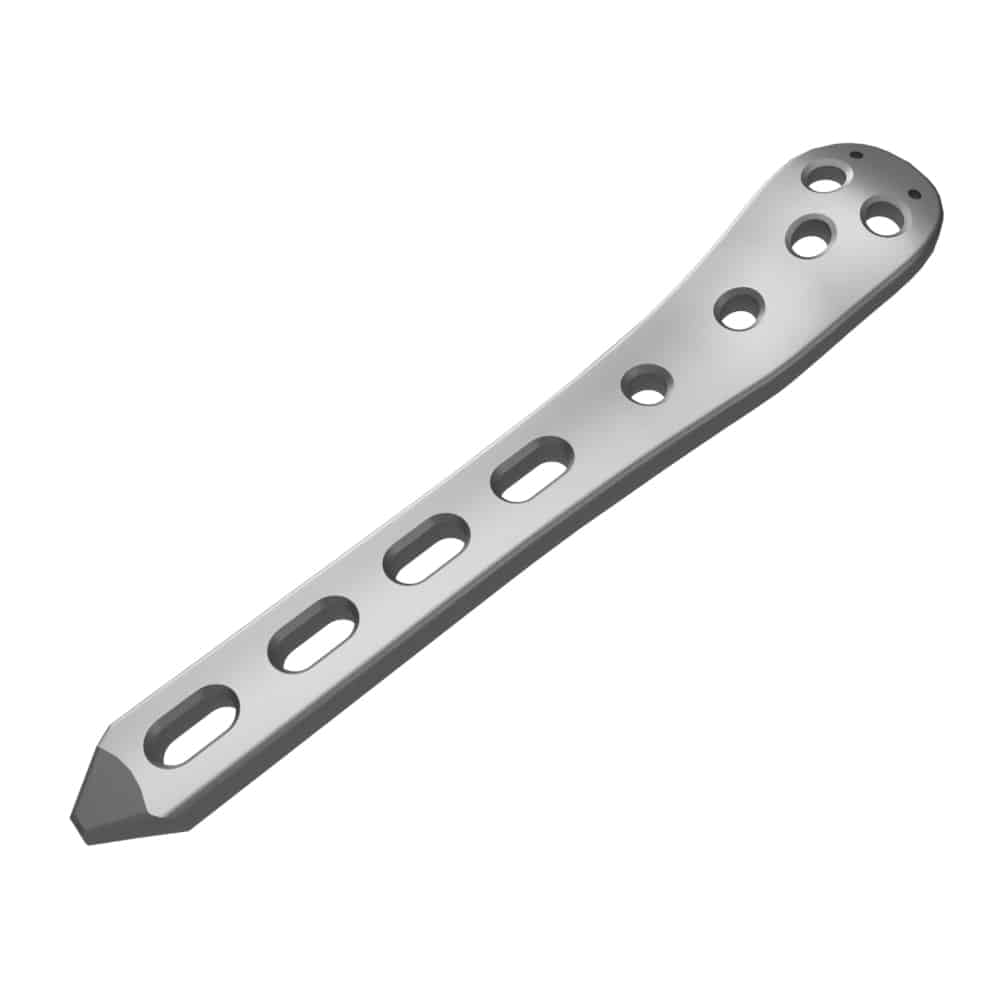

4,5 MM PROXIMAL FEMUR COMPRESSION PLATE 1

Categories: , ,
  1. General Details

    Temporary fixation of fractures of the trochanteric region, fractures of the proximal femur, metastatic fractures of the proximal femur, osteotomies of the proximal femur and fixation of nonunions or malunions of proximal femur in adult patients.

  2. Product Chart
    SS TI HOLES SIDE LENGTH (mm)
    A100 02 252 0005 A110 02 252 0005 5 Left 126,8
    A100 02 252 0007 A110 02 252 0007 7 Left 162,8
    A100 02 252 0009 A110 02 252 0009 9 Left 198,8
    A100 02 252 0011 A110 02 252 0011 11 Left 234,8
    A100 02 252 0013 A110 02 252 0013 13 Left 270,8
    A100 02 253 0005 A110 02 253 0005 5 Right 126,8
    A100 02 253 0007 A110 02 253 0007 7 Right 162,8
    A100 02 253 0009 A110 02 253 0009 9 Right 198,8
    A100 02 253 0011 A110 02 253 0011 11 Right 234,8
    A100 02 253 0013 A110 02 253 0013 13 Right 270,8
